Calibration of single phase energy meter by direct loading

AIM:

To calibrate the energy meter by direct loading.

APPARATUS REQUIRED:

  1. Voltmeter
  2. Ammeter
  3. Wattmeter
  4. Lamp load
  5. Energy meter

THEORY:

The process of comparing of an instrument with standard or absolute instrument is called calibration. The energy meter records the energy consumed in KWH. Let RX be the number of revolutions of the disc. KX Is the revolution per KWH (meter constant).

PROCEDURE:

  1. Connections are made as per the circuit diagram
  2. Keep the autotransformer at minimum position and switch on the supply
  3. Adjust the autotransformer to the rated voltage of the energy meter
  4. Adjust the load to a suitable value and note the corresponding w/m reading and time taken for 5 revolution of energy meter disc
  5. Repeat the step no 4 after increasing the load
  6. Tabulate the readings and calculate the %error

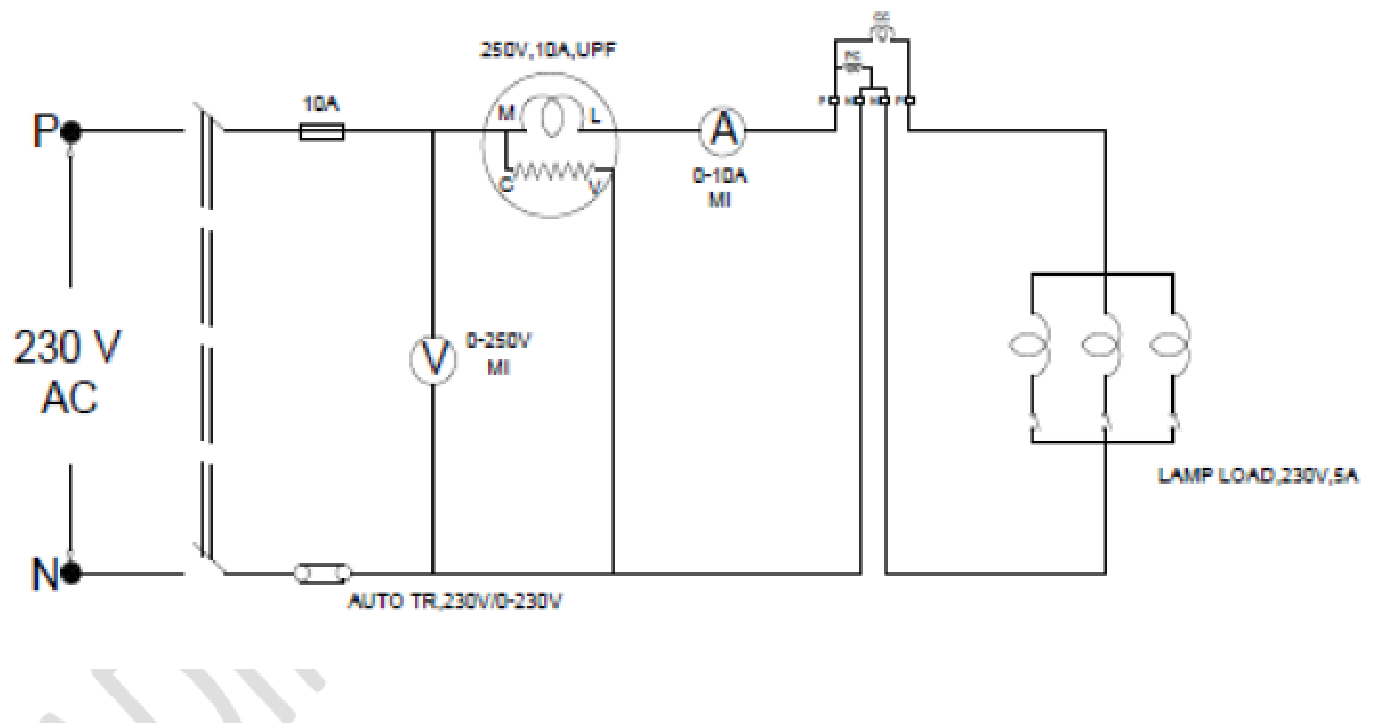

CIRCUIT DIAGRAM:

OBSERVATIONS:

Sl.Nov/m in VoltA/m in AmpsNo. of revolutionsw/m in WattsTime in secTrue EnergyActual Energy% error

RESULT:

Thus the given single phase energy meter is calibrated by direct loading.
