Bistable Multivibrator

by eees.in · Published March 28, 2023 · Updated March 28, 2023

AIM

To set up an bi stable multivibrator using transistors, study its performance and observe the wave form at various points.

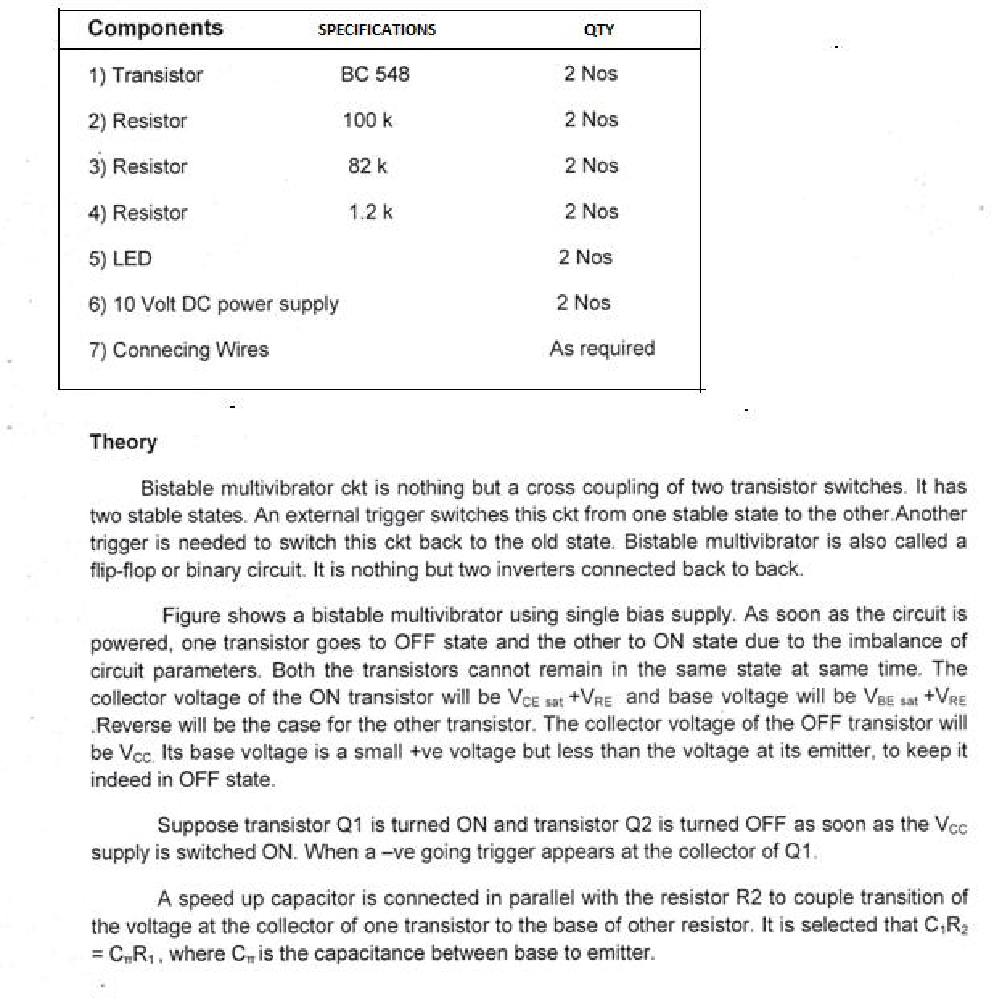

COMPONENTS AND EQUIPMENTS REQUIRED

PROCEDURE

1. Verify the condition of all components.

2. Set up the circuit and observe the collector and base waveforms of both the transistors.

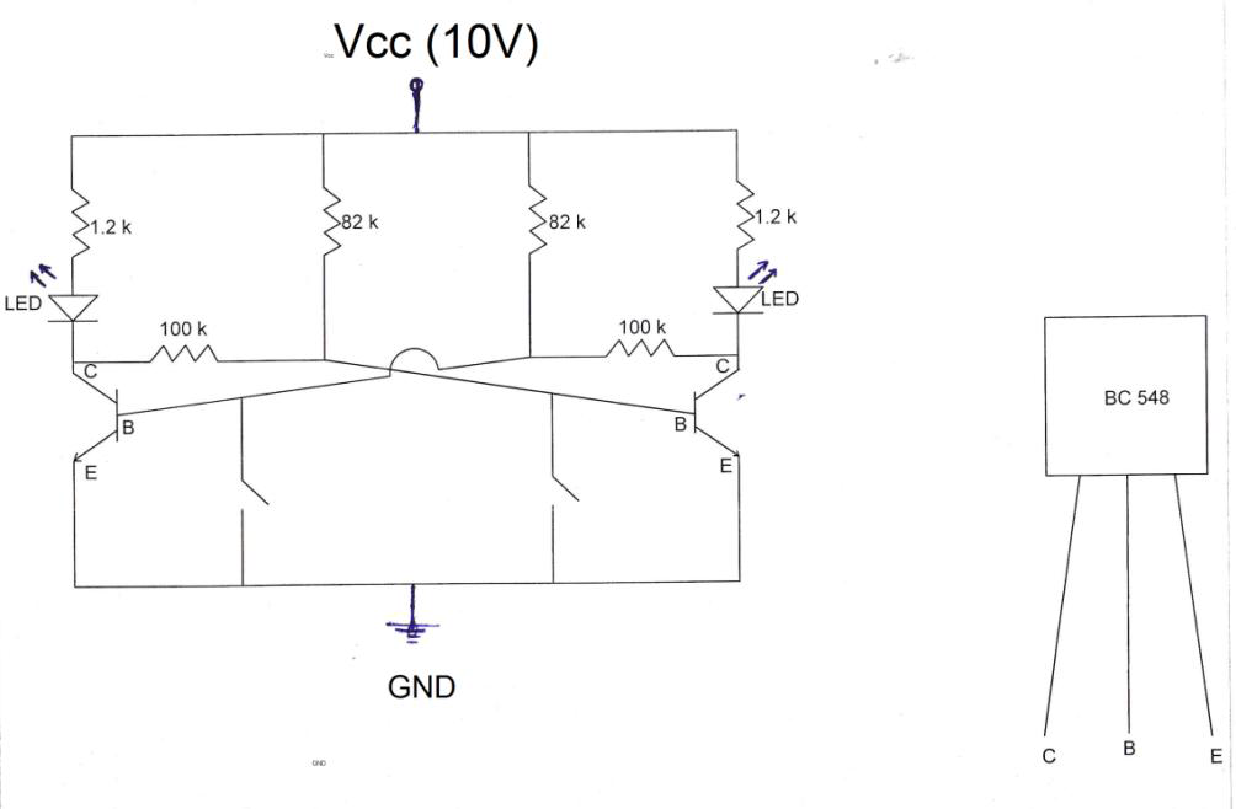

CIRCUIT DIAGRAM

RESULT

Observed the collector and base waveforms of both the transistor
